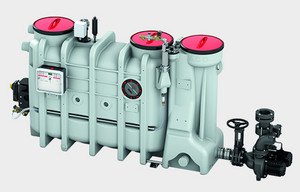

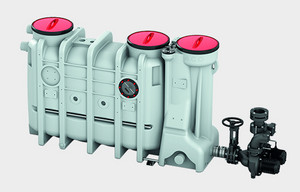

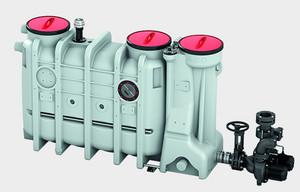

ACO Complete disposal with integrated lifting plant LipuSmart


As the core equipment of drainage system in commercial kitchen, grease separators and lifting plants are necessary, which brings forward higher requirement to the planning and layout work within equipment rooms.

ACO LipuSmart only occupies small area and space with compact structure, making installation more flexible and convenient. The innovative overall system control has characteristic of high intelligence.

Product advantages:

  • Innovative overall control unit
  • Compact erection dimensions for space saving
  • One-piece sealed enclosure
  • Disposal and cleaning by means of cover

Product information

  • For indoor installation; with full disposal
  • 4in1 – complete solution
  • Grease separator according to DIN EN 1825
  • Waste water lifting plant according to EN 12050-2
  • Wastewater lifting plant
    • Two pumps (one for backup) with operation voltage 400V, 50Hz
    • The pump technology can be flexibly mounted on 3 sides
    • Backflow preventer available with three way valve connected
    • Flexible couplings for DN100 pressure piping
    • Inlet with stop valves (optional)
  • Pneumatic level switching
  • Control panel
    • Operating voltage 400V, 50Hz; protection level IP54
    • Optional Bluetooth or Modbus connection
    • Can connect to central control room

Product advantages

  • Innovative overall control unit
  • Compact erection dimensions for space saving
  • One-piece sealed enclosure
  • Disposal and cleaning by means of cover

Product information

  • For indoor installation; with full disposal
  • 4in1 – complete solution
  • Grease separator according to DIN EN 1825
  • Waste water lifting plant according to EN 12050-2
  • Ventilation connection DN100
  • Disposal connection DN65 with quick coupling
  • Wastewater lifting plant
    • Two pumps (one for backup) with operation voltage 400V, 50Hz
    • The pump technology can be flexibly mounted on 3 sides
    • Backflow preventer available with three way valve connected
    • Flexible couplings for DN100 pressure piping
    • Inlet with stop valves (optional)
  • Pneumatic level switching
  • Control panel
    • Operating voltage 400V, 50Hz; protection level IP54
    • Optional Bluetooth or Modbus connection
    • Can connect to central control room
  • Selectable right/left operating side

Product advantages

  • Innovative overall control unit
  • Compact erection dimensions for space saving
  • One-piece sealed enclosure
  • Disposal and cleaning by means of cover
  • Automatic internal cleaning

Product information

  • For indoor installation; with full disposal
  • 4in1 – complete solution
  • Grease separator according to DIN EN 1825
  • Waste water lifting plant according to EN 12050-2
  • Ventilation connection DN100
  • Disposal connection DN65 with quick coupling
  • Inspection window with wiper
  • Wastewater lifting plant
    • Two pumps (one for backup) with operation voltage 400V, 50Hz
    • The pump technology can be flexibly mounted on 3 sides
    • Backflow preventer available with three way valve connected
    • Flexible couplings for DN100 pressure piping
    • Inlet with stop valves (optional)
  • Pneumatic level switching
  • Control panel
    • Operating voltage 400V, 50Hz; protection level IP54
    • Optional Bluetooth or Modbus connection
    • Can connect to central control room
  • Selectable right/left operating side
