Partial disposal grease separator

In restaurants, commercial kitchens and meat processing plants, grease in wastewater can accumulate. This kind of greasy wastewater is quite different from domestic wastewater, causing risks to pipelines and sanitary drainage objects. Greases and oils deposit on the walls of the pipes together with other wastewater constituents and can lead to corrosion, blockages and odour nuisance. For these reasons, the use of grease separators is mandatory in industrial and commercial environments where grease-polluted wastewater is produced.

A grease separator works purely physically, applying gravity (difference in density), i.e. heavy wastewater contents sink to the bottom and light substances such as animal oils and fats rise to the top of the separator. The treated wastewater is then discharged into the sewers via the drainage outlet pipe.

With grease separators for partial disposal, sludge and grease are collected in separate containers, and then treated by professional recycling companies.

Product advantages:

Compact footprint dimensions for small applications
Structural stability of the container with 25-year stability verification
Partial disposal of grease and sludge, reducing disposal cost
Cleaning undertaken independently of normal operations; no disposal vehicle required
No smell within equipment operating room
Easy control and maintenance

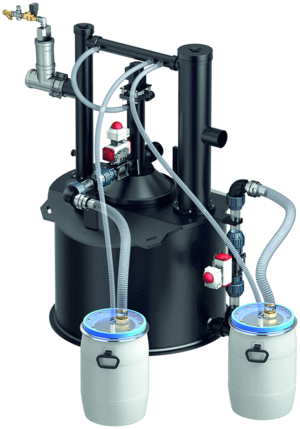

ACO Grease Separators

HDPE

Manufactured of welded polyethylene
Grease separator plant according to EN 1825
With inlet and outlet quick coupling for easy installation
With heating rod and agitating device for homogenizing of grease
Control box equipped with electric connection: 230 V, 50/60 Hz
Equipped with ventilation lines to connect drums and grease collection zone with the outside environment, in case of excessive local pressure. Ventilation connection DN100.
Front coarse trap available (optional) for preventing large solid impurities from entering separator

Nominal capacity	DN	Total content	Largest component		Weight
		(L)	Diameter x Height	Heaviest single component	Empty	Full
		(L)	(mm)	(kg)	(kg)	(kg)
NS 4	100	570	1270X860	80	160	836
NS 7/10	150	1570	1660X660	120	240	1855
NS 15/20	200	2250	1920X700	160	392	2590
NS 25	200	2500	1920X700	160	450	2870

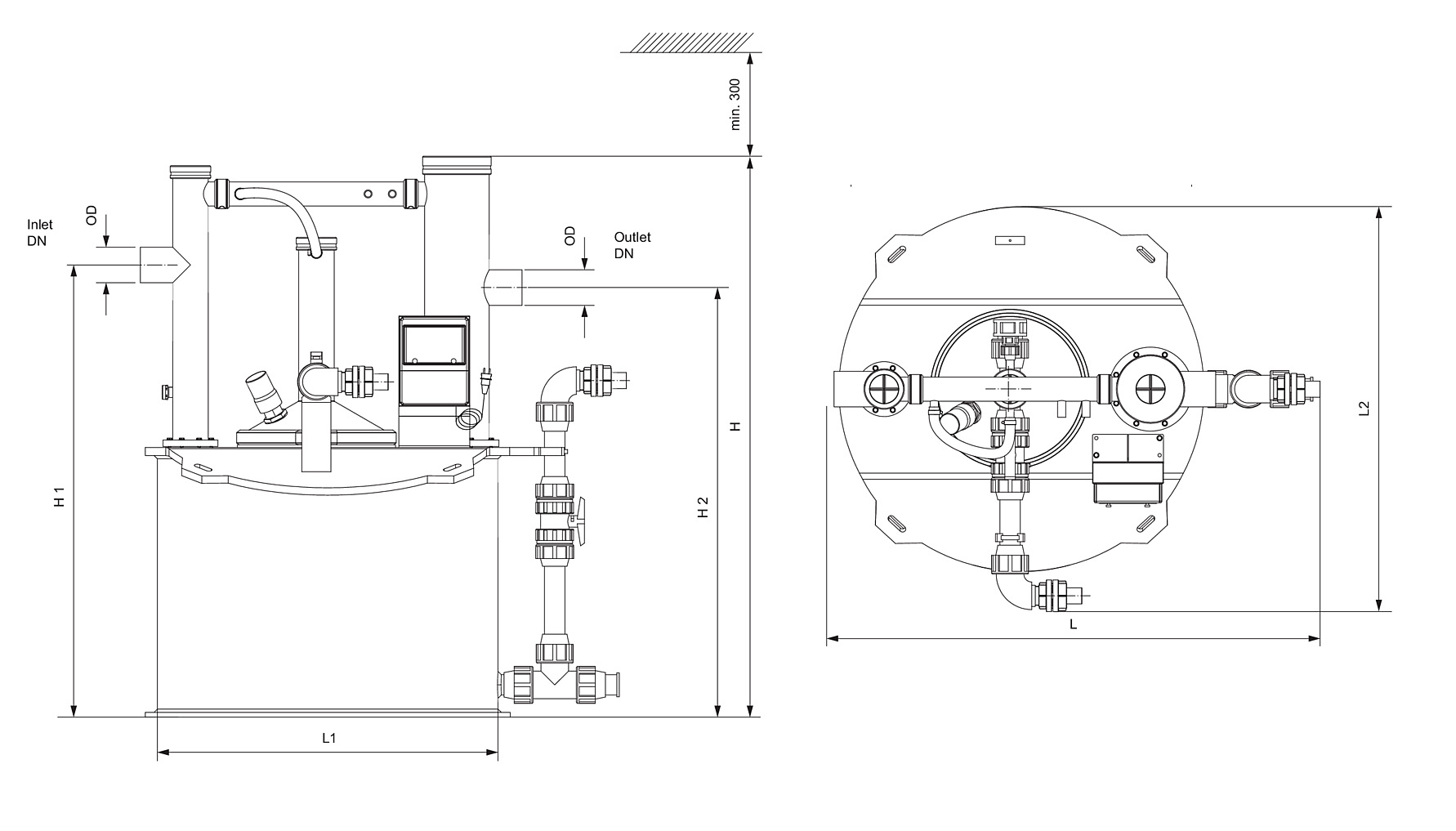

Nominal capacity	Dimensions
	L	L1	L2	H	H1	H2
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
NS 2	1500	1055	1270	1730	1300	1230
NS 4	1500	1055	1270	1830	1400	1330
NS 7	1990	1475	1530	2210	1800	1730
NS 10	1990	1525	1530	2210	1800	1730
NS 15	2240	1725	1910	2320	1900	1830
NS 20	2240	1775	1910	2320	1900	1830
NS 25	2240	1775	1910	2420	2000	1930

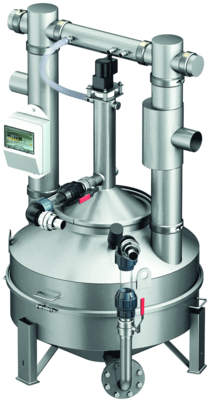

ACO Lipator-S-RM grease separator for partial disposal made of stainless steel

Import of complete machines from German with stainless steel grade EN1.4571 (304 according to AISI)
Grease separator plant according to EN 1825

With inlet and outlet quick coupling for easy installation
With heating rod and agitating device for homogenizing of grease
Front coarse trap available (optional) for preventing large solid impurities from entering separator
Control box equipped with electric connection: 230 V, 50Hz/1.75kw
Equipped with ventilation lines to connect drums and grease collection zone with the outside environment, in case of excessive local pressure. Ventilation connection DN100.
With venting port DN100 for inspection operation

Nominal capacity	DN	Total content	Largest component		Weight
		(L)	Diameter x Height	Heaviest single component	Empty	Full
		(L)	(mm)	(kg)	(kg)	(kg)
NS 2	100	220	750X880	50	150	370
NS 4	100	480	980X450	45	190	670
NS 7/10	150	1570	1500X650	95	300	1700
NS 15/20	200	2160	1750X780	120	360	2380
NS 25	200	2260	1750X780	120	360	2620

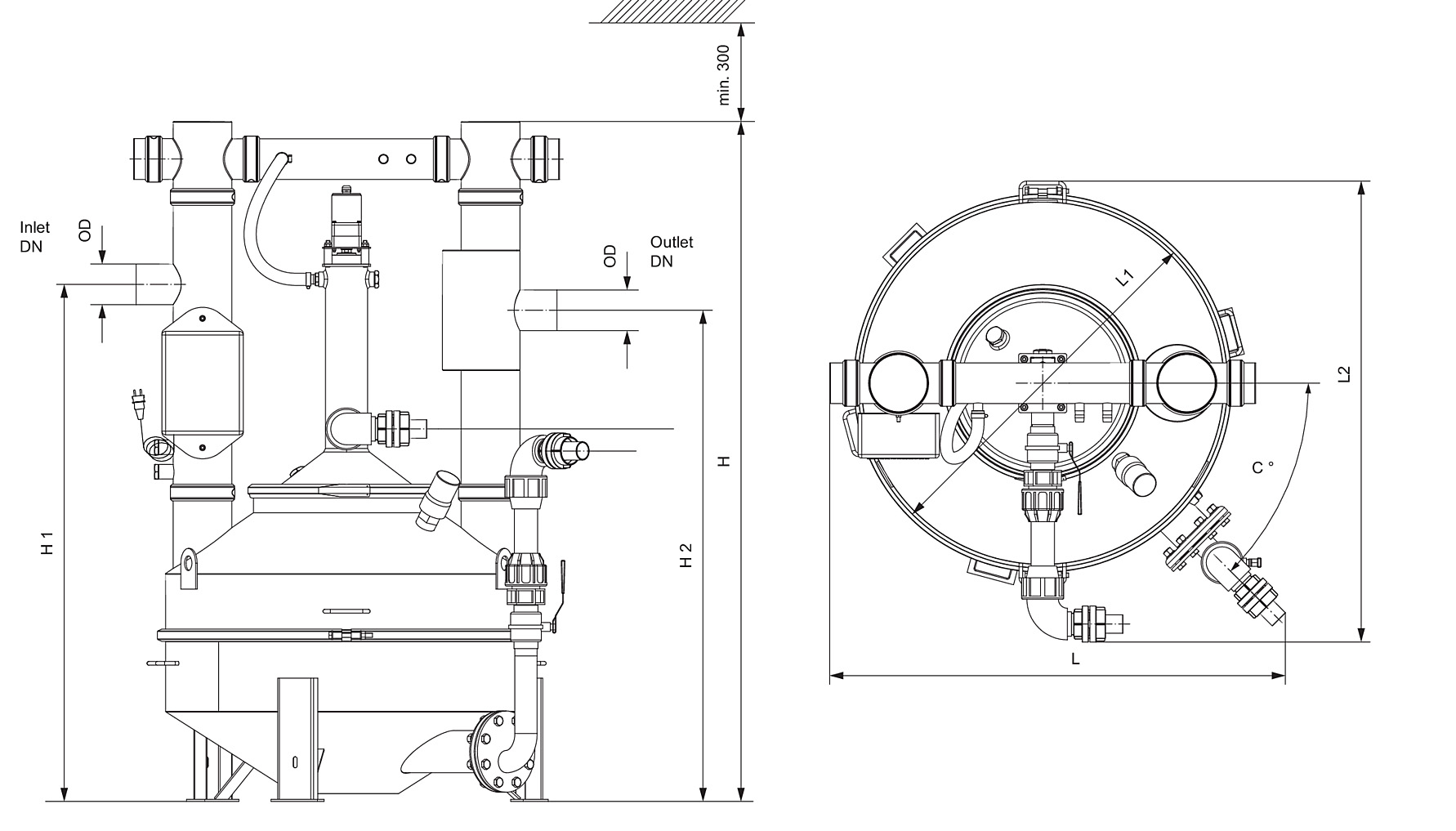

Nominal capacity	Dimensions
	L	L1	L2	H	H1	H2
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
NS 2	1170	640	970	1700	1300	1230
NS 4	1240	980	1300	1850	1400	1330
NS 7	1710	1450	1670	2200	1800	1730
NS 10	1710	1500	1670	2200	1800	1730
NS 15	1950	1700	1880	2320	1900	1830
NS 20	1950	1750	1880	2320	1900	1830
NS 25	1950	1750	1880	2320	1900	1830
