ACO Monoblock PD is a simple yet versatile channel drainage system for surface water conveyance which has been specifically developed to meet the demands of contractors and clients alike. Designed to maintain the long term performance and appearance of the installation, its robust one-piece construction removes the risks associated with dislodged or stolen gratings – providing a highly effective alternative to traditional two-part channel and grate systems.

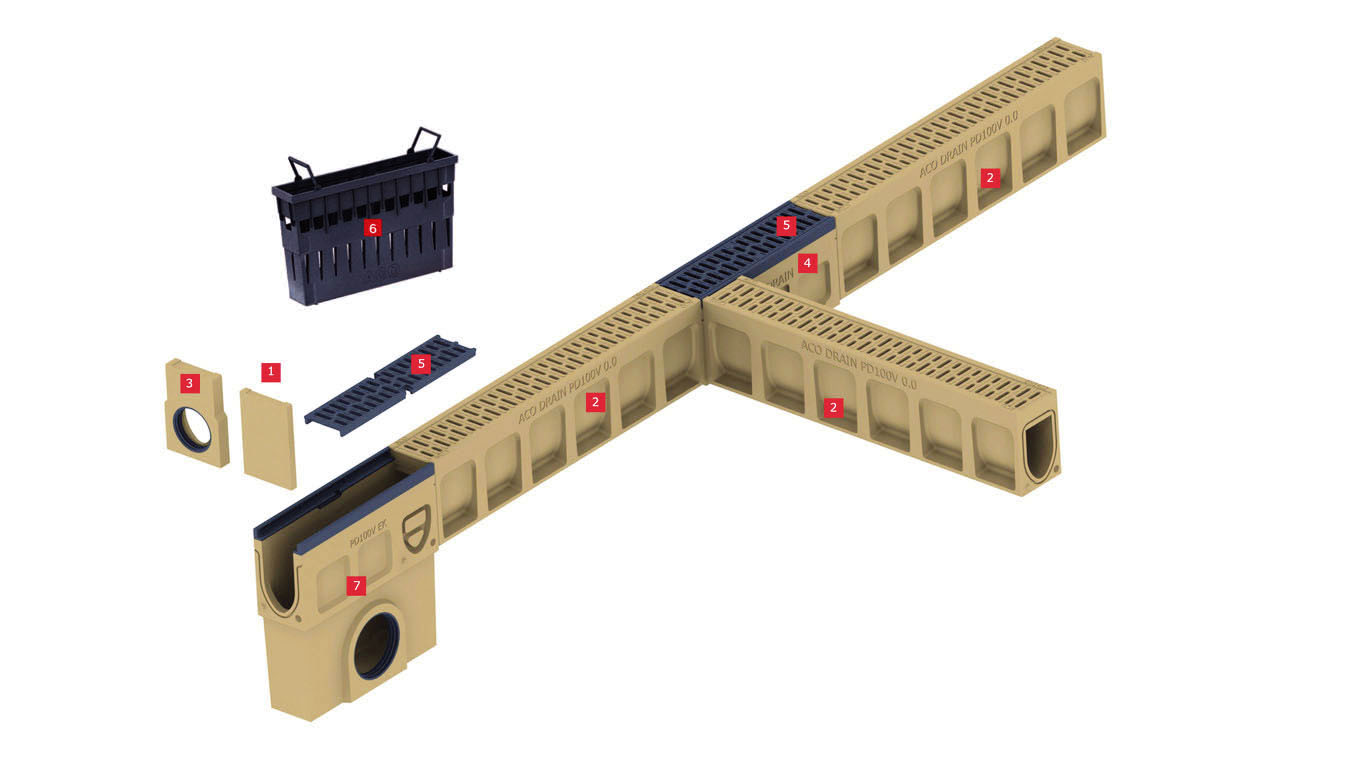

ACO Monoblock PD
Product/Description | Length (mm) | Width(mm) | Height (mm) | Weight (kg) | Item no. | |

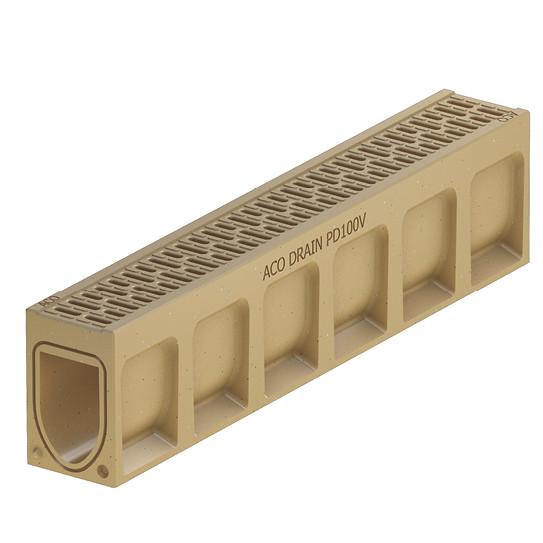

Channel body | PD100V-0.0 | 1000 | 150 | 230 | 32.8 | 10832 |
Inspection element | PD100V-0.1 | 500 | 150 | 230 | 17.8 | 10836 |
Universal end cap | PD100V-0 end cap | 20 | 150 | 230 | 1.4 | 10833C |
End cap with LLS | PD100V-0 end cap with LLS pipe connection DN100 | 20 | 150 | 230 | 1.2 | 10834C |
Product/Description | Length (mm) | Width (mm) | Height (mm) | Weight (mm) | Item No. | |
Channel body | PD200V-0.0 | 1000 | 250 | 320 | 78 | 11026 |
PD200V-10.0 | 1000 | 250 | 370 | 82 | 11027 | |
PD200V-20.0 | 1000 | 250 | 420 | 86 | 11028 | |
Inspection unit | PD200V-0.1 | 500 | 250 | 320 | 25 | 11029 |
RD200V-20.1 | 660 | 260 | 530 | 67.6 | 130017C | |
Adaptor | PD/RD200V-0.0/0.0 | 50 | 260 | 330 | 8.3 | 11464 |
PD/RD200V-0.0/0.0 | 50 | 260 | 330 | 7.3 | 11467 | |
PD/RD200V-10/20 | 50 | 260 | 530 | 11.6 | 11468 | |
PD/RD200V-10/20 | 50 | 260 | 530 | 13.3 | 11465 | |
PD/RD200V-20/20 | 50 | 260 | 530 | 10.9 | 11469 | |
PD/RD200V-20/20 | 50 | 260 | 530 | 11.9 | 11466 | |
Universal end cap | PD200V-0 end cap | 50 | 260 | 330 | 8.4 | 11464D |
PD200V-20 end cap | 50 | 260 | 530 | 15.1 | 11466D | |
Sump unit | RD200V-0 top section | 660 | 260 | 360 | 48.0 | 130022C |
RD200V-20 top section | 660 | 260 | 560 | 65.0 | 130023C | |
RD200V bottom section | 500 | 260 | 365 | 26.5 | 10936 |
