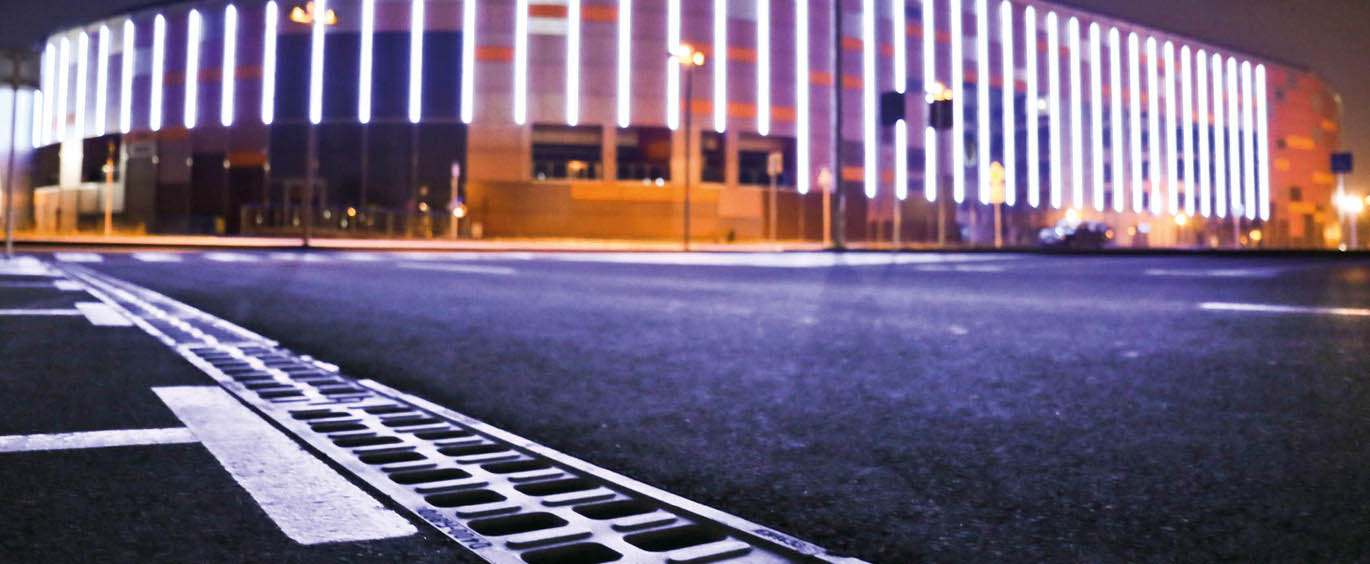

ACO Monoblock represents a guarantee of high stability and sturdiness for the in-line channeling of highways and highways with high traffic density. However, the ideal environment for these channels is made up of aprons for containers and airport terminals that share the same characteristic: highly dynamic heavy traffic. Similar scenarios consist of road environments characterized by high-speed traffic, such as Formula 1 tracks, test tracks for road and sports cars, or very heavy traffic, such as motorways.

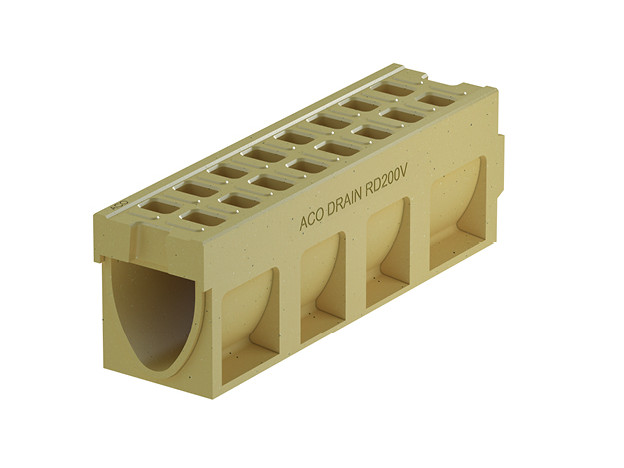

ACO DRAINĀ® Monoblock RD

Product benefits:

  • Monolithic structure for stability
  • No loose parts, avoid noise
  • V-profile
  • Load class up to F900, according DIN EN 1433
  • Maintenance access unit available

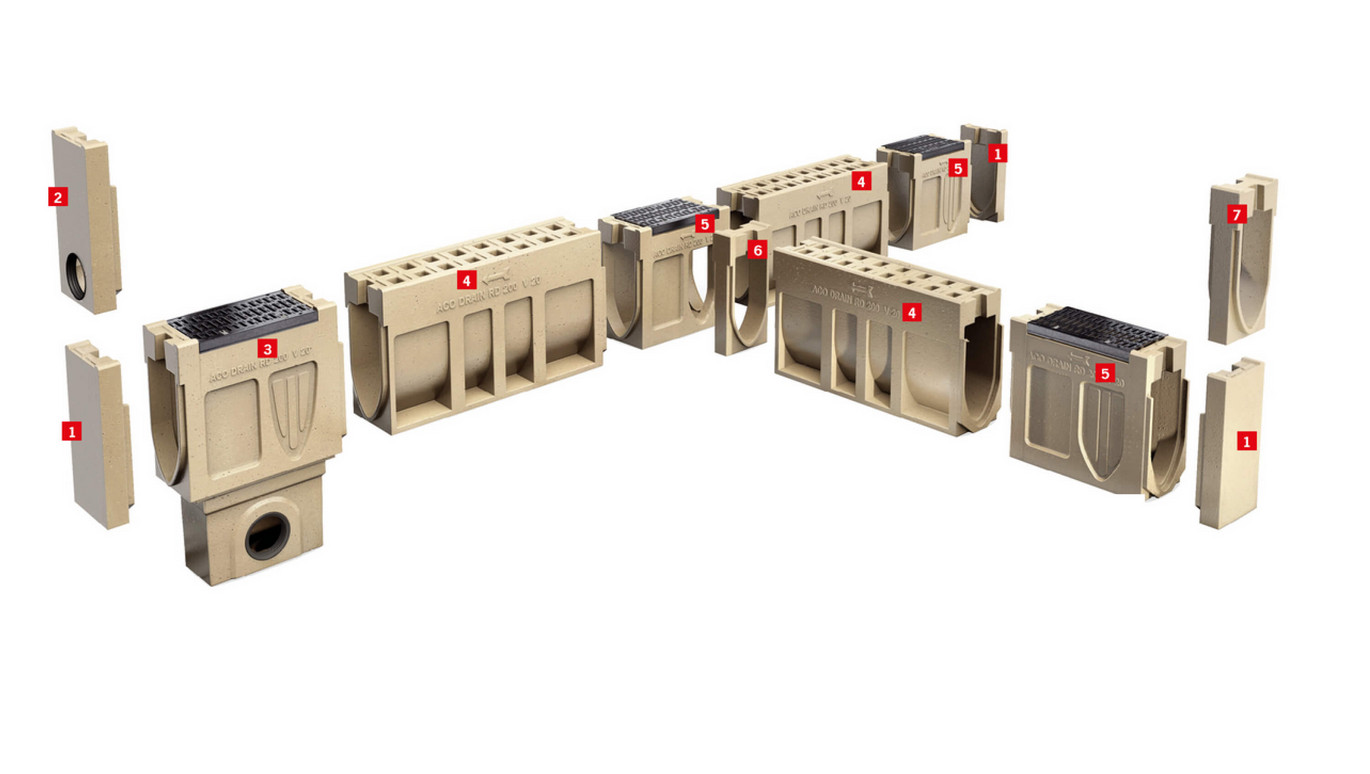

Product/Description

Length

Width

Height

Weight

Item No.

Channel body

RD200V-0.0

1000

260

330

92

130004

RD200V-20.0

1000

260

530

111

130006

Access unit

RD200V-0.1

660

260

330

51.6

130016C

RD200V-0.2

660

260

330

51

130018C

RD200V-20.1

660

260

530

67.6

130017C

RD200V-20.2

660

260

530

67

130019C

Universal end cap

PD/RD200V-0 end cap

50

260

330

8.4

11464D

PD/RD200V-20 end cap

50

260

530

15.1

11466D

Sump unit

RD200V-0 top section

660

260

360

48

130022

RD200V-20 top section

660

260

560

65

130023

RD200V bottom section

500

260

365

26.5

10936
