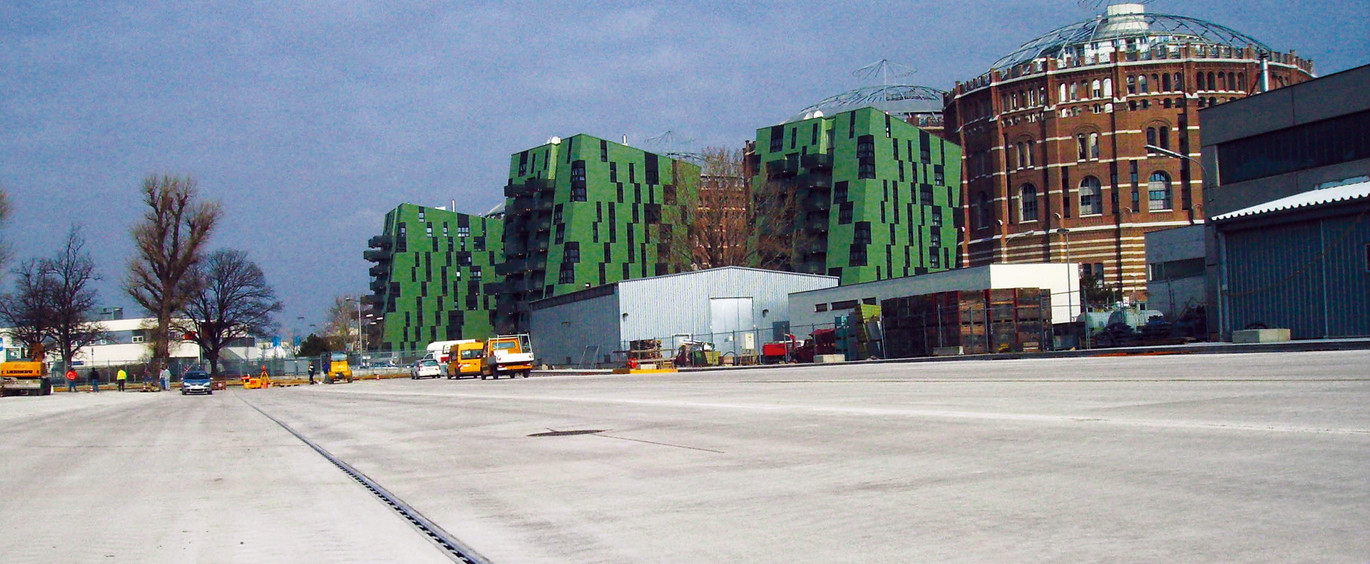

On sealed large areas, rainfall can quickly lead to very high flow rates of several hundred litres per second. The ACO Qmax system, with linear surface drainage, has been specially developed for the drainage and retention of large sealed surfaces with traffic loads up to Class F 900. The advantage is the low weight with a particularly robust construction. ACO Qmax system thereby withstands high loads and impresses with its easy handling and laying on the construction site. The Qmax system is an ideal component in the ACO system chain for modern rainwater management.

ACO Qmax


Features
■Unobtrusive continuous slot drainage system
■Eliminates stormwater carry over
■Effective SUDS solution
■Sealed system
■Improves onsite handling andnstallation rates
■Proven performance and durability
■Effective silt management
■Safe and secure installation
■Meets environmental construction targets

ACO Qmax

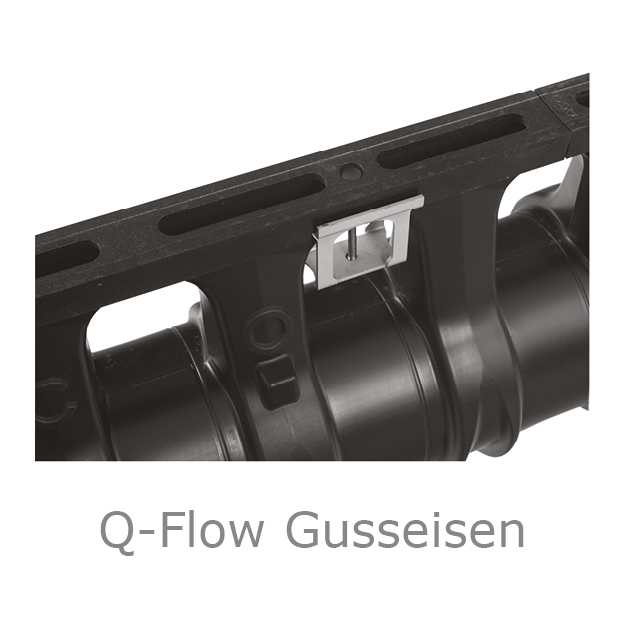

Options of materials, slot widths and load classes offer a comprehensive choice for any application from pedestrian to heavy duty. The material of slot is cast iron.

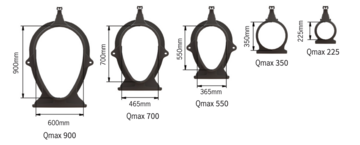

Product/descriptionDimensionsItem No.

Length

Width

Height

Weight

Cast iron

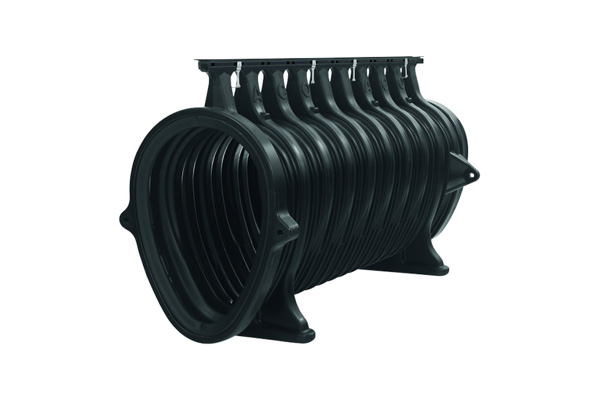

Channel bodyQmax Neo 30010003365619.8157006
Qmax350200041560028.732810
Qmax550200063592040.432820
Qmax7002000730107046.732830
Qmax900200086012706232840
ACO Qmax access chamber with slotted cover and frameQmax225/350 D400 单层5655656404832970
Qmax225/350 F900 单层66066064077.532971
Qmax225/350 D400 双层56556510955232972
Qmax225/350 F900 双层660660109581.532973
Qmax225/350 D400 三层56556516006032974
Qmax225/350 F900 三层660660160089.532975
Qmax 550/700/900 检修盒D400870870150014844314
Qmax 550/700/900 检修盒F900870870150018144316
End capQmax3502604154152.642351
Qmax550635127153.532825
Qmax700730128654.932835
Qmax9008601610659.832845
Step connectorQmax550/700730758652.532882
Qmax700/9008609510653.732883
Chamber connectorsQmax550——————11.832826
Qmax700——————15.832836
Qmax900——————25.132846
