Hygienic Channel-2

The ACO hygienic box channel range incorporates the hygienic design principles to ensure the top hygienic performance. The ACO hygienic box channel range is ideal for applications where there is a need to retain large volumes of fluid. All ACO hygienic box channels have been tested and certified according to EN 1253.

ACO hygienic box channel

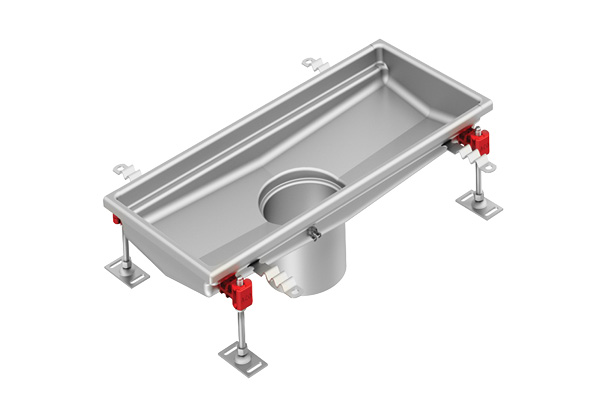

Produktabbildung ACO Bodenwannen FHD aus Edelstahl

Hygienic features:

  • Stainless steel grade min. 1.4301 according to EN 10088 (304 according to AISI)
  • All internal radii equal or larger than 3mm which greatly increases cleaning effectiveness
  • Fully welded hygienic joints to eliminate crevices that can harbour dangerous bacteria
  • Edge infill to minimize risk of floor cracks which could harbour microorganism
  • Minimal slope 1% longitudinal and minimal slope 5° sectional
  • V shape bottom for width ≤ 300 mm and reinforced bottom for width > 400mm
  • Adjustable levelling feet
  • 304 or 316L slit basket available as accessory
  • Detachable foul air trap and support available as accessory
  • Outlet without deformation
  • Easy and secure telescopic connection with gully
  • Fully pickled and passivated

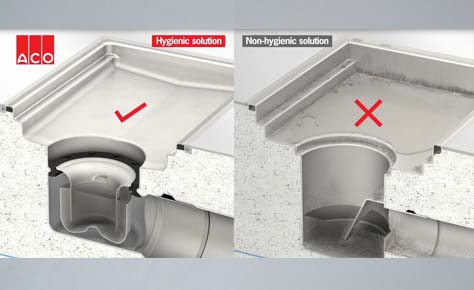

ACO Hygienic Box Channel-Video

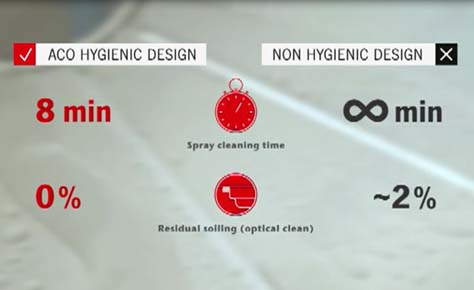

ACO Hygienic Box Channel Cleaning Test - Video

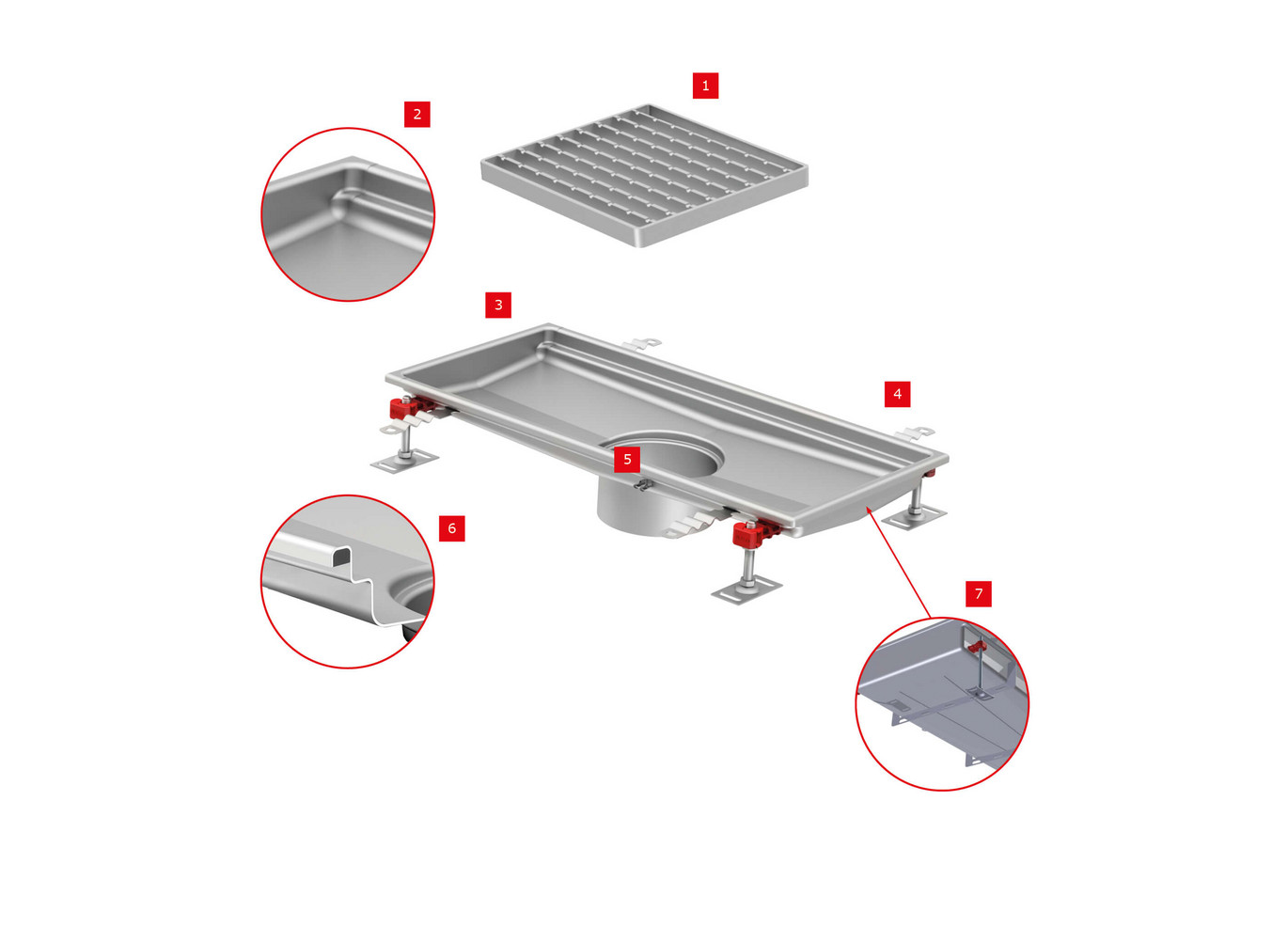

ACO-Hygienic Channels-With Description

ACO box channel – fixed height solution

ACO hygienic box channel – standard edge

ACO hygienic box channel – extended edge

ACO vinyl box channel

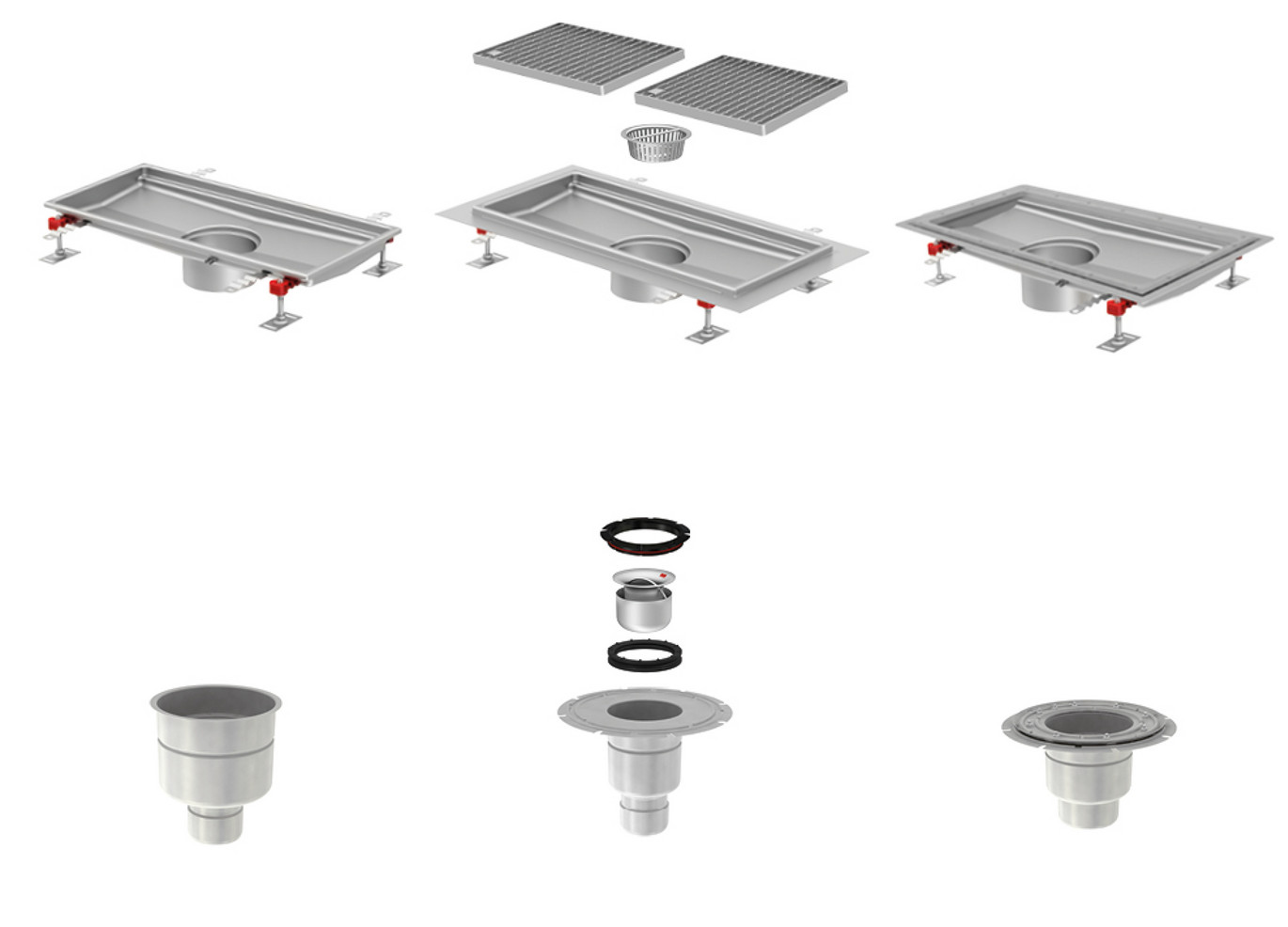

ACO-Hygienic Channels With Eqipment

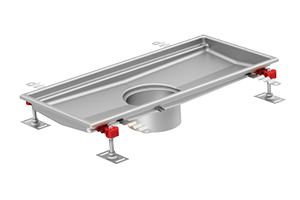

Produktabbildung ACO Bodenwanne FHD Typ Standard
ACO hygienic box channel – standard edge
Produktabbildung ACO Bodenwanne FHD Typ Dünnbettflansch
ACO hygienic box channel – extended edge

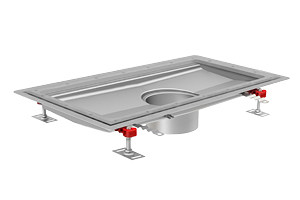

Produktabbildung ACO Bodenwanne FHD Typ Vinyl
ACO vinyl box channel

Die hygienischen ACO Entwässerungssysteme entsprechen den strengsten Hygienevorschriften (FHD/ Fully Hygienic Designed), um einer Verunreinigung durch schädliche Bakterien vorzubeugen.

Wir arbeiten nach den geltenden Hygiene-Richtlinien in der Lebensmittelverarbeitung gemäß EN 1672, EN ISO 14159 und dem EHEDG-Dokumenten Nr. 8, 13 und 44 für das Design von Abläufen.


ACO channel hygienic features:

  • Fully drainable
  • Internal radii equal or larger than 3 mm
  • Hygienic joints
  • Edge infill
  • Stainless steel grade min. 1.4301
  • Fully pickled and passivated
  • No overlap joints
